Specification Sheet

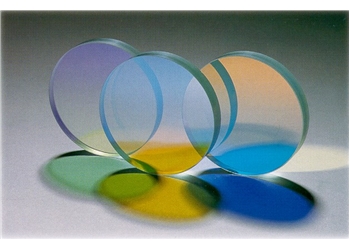

Dichroic Mirror, 605 nm Longpass Cutoff

Code

: DCM027

Categories

Substrate material

: Fused silica

Clear Aperture

: < 90%

Wave front distortion

: < λ/4 @ 632nm over complete aperture

AR Coating range

: (R < 2% on coated surface)

Angle of Incidence

: 45 °

Surface quality

: 40-20 Scratch - Dig.

Reflection band (R*avg > 90%)

: 470-590 nm

Transmission band (T*avg > 90%)

: 620-700 nm

Diameter

: 25 mm (± 1%)

Thickness

: 3.2 mm (± 1%)

Safety Information for this product is unavailable at this time.

Packings	Price (INR)
1 pc	POR
10 pc	POR
