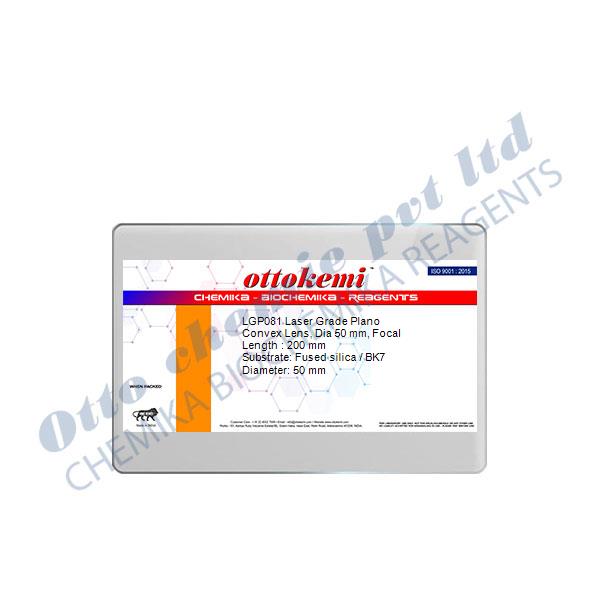

Laser Grade Plano Convex Lens, Dia 50 mm, Focal Length : 200 mm

Code: LGP081

Synonyms: Plano-Convex Cylindrical Lens (Laser grade), Laser Grade PCX Lens

Plano-Convex Lens

9001 / 9002

Container
18%
Plano-Convex Lens

9001 / 9002


Container

18%
PackingsPrice (INR)
1 pc 120609.00
10 pc POR
Custom size POR
Packings
Enquire
Properties
Fused silica / BK7

50 mm

± 2 %

2.0 mm - 2.5 mm

± 2 %

1080 nm

>85% for 500-2000 nm >99% for 1080 nm

40 - 20 scratch & dig or better

λ/10

> Central 85% of diameter

< 1 arc min

AR coated @1080 nm on both surfaces

<0.25% @ 1080nm

> 100 kW/cm2 CW @1080 nm

Safety bevel

Description

Plano-Convex (PCX) Lenses have a positive focal length, making them ideal for collecting and focusing light. They are also useful in a variety of applications involving emitters, detectors, lasers, and fiber optics.

Application

Laser Grade Plano Convex Lens, Dia 50 mm, Focal Length : 200 mm - used for focusing high power fiberlaser beam.

Safety Information

Safety Information for this product is unavailable at this time.
