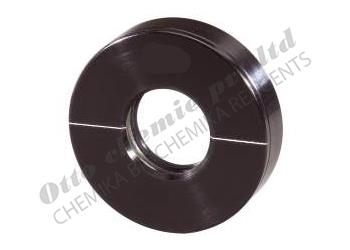

Germanium single crystal, 50 mm dia, 50 mm length (N type)

Code: GW 1908

N type

Ge

9002

72.64

Container
18%

N type

Ge

9002

72.64

Container

18%
PackingsPrice (INR)
1 pc 170199.00
10 pc POR
Packings
Enquire
Properties
99.999%

50 mm

± 0.1%

50 mm

± 0.1%

Cylindrical

N (donor)

Cylindrical ground

(100)

2.5 μm RMS or less

4x10 8 to 4x10 10/ cm3

>10 k-Ohm-cm at 77K

>1ms

Ranging from 1000 to 5000 / cm2

5 x 10 8 /cm 3 or less

>=10,000 V/cm-sec

Description

Germanium is a chemical element with symbol Ge and atomic number 32. It is a lustrous, hard, grayish-white metalloid in the carbon group, chemically similar to its group neighbors tin and silicon.

Application

Germanium single crystal, 50 mm dia, 50 mm length (N type) - used at temperatures below 100°C. Germanium’s high density (5.33 g/cm3) should be considered when designing for weight-sensitive systems

Safety Information

RIDADR NONH for all modes of transport WGK Germany 3
