Specification Sheet

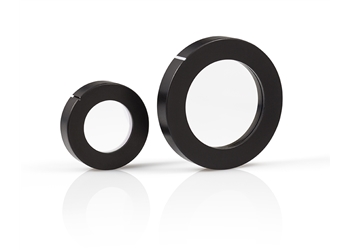

Zero Order Quarter Wave Retardation Plate, Dia 50 mm, Thick 6 mm

: ZWP0171


Properties

: Quartz (Crystalline)

: 50 mm (±0.2mm)

: 60 mm (±0.2mm)

: Black anodized aluminum mount with marked axis

: 6mm (±0.2mm)

: Multilayer AR coatings R<0.25%

: < 1 arc minute

: 60-40 scratch and dig

: ±λ/300

: λ/8 @ 632.8 nm per 25mm range

: >10J/cm2, 20ns, 20Hz @1064nm

: ±9°

: 632.8 nm

: >95% of diameter or nearest standard


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
50 pcs POR
