Specification Sheet

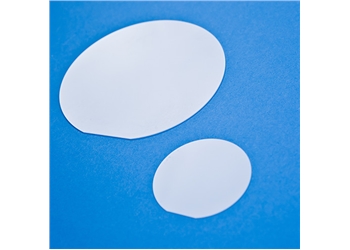

Sapphire wafers, <100>, dia. x thickness 100 mm x 0.5 mm

: SS 1080

: Wafer in cassette vacuum sealed. Packaging provided for wafers.

: SS 1080 (OTTO) Sapphire wafers, <100>, dia. x thickness 100 mm x 0.5 mm - used substrate material for blue, green, ultraviolet and white LEDs.


Properties

: Sapphire

: Orientation <100>

: C-axis(0001) to M(1-100)0.2°±0.1°

: 100 mm

: 0.5 (±0.025)mm

: ± 1%

: A-Plane±0.3°

: 30±1mm

: <0.3nm

: <1.2μm

: <10μm

: <15μm

: <15μm

: Class 100 clean room cleaning and vacuum nitrogen packaging

: SSP


Safety Information

Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
Custom size POR
