Specification Sheet

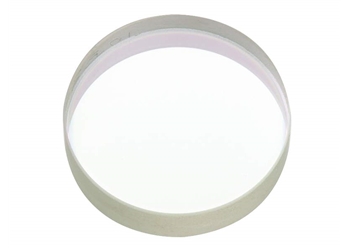

Round Ultrabroadband Dielectric Mirrors

: RUV 090

: puriss

: Coating type Ultra-broadband dielectric

: High performance all dielectric mirrors
Rs, Rp >99% over a wide spectral range
Designed to work for 0-50 degrees angle of incidence
Special high damage threshold dielectric coating

: Ultra-Broadand high reflectors are ideal for applications such as photon counting, hyperspectral imaging or Raman Spectroscopy.


Properties

: 350-700 nm

: 1.0 in. (25.4 mm)

: 0.25 in. (6.35 mm)

: UV grade fused silica

: 20-10 scratch-dig

: ≥ 80% of diameter

: > 99% @ 350-700 nm

: ≤ λ/10 @ 632.8 nm

: 1J/cm2 at 20 ns 532 nm, 20 Hz


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
