Specification Sheet

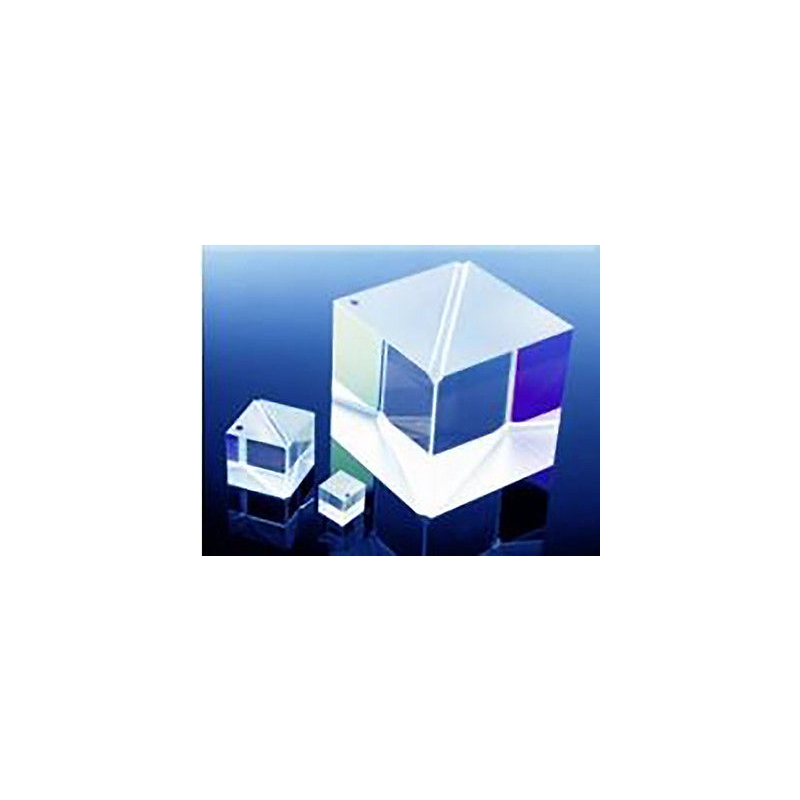

Polarizing cube beam splitters, 50.8mm x 50.8mm x 50.8mm+/-0.2mm

: PCB 087

: for synthesis

: 50.8mm x 50.8mm x 50.8mm+/-0.2mm

: Polarizing beam splitters, such as the Wollaston prism, use birefringent materials, splitting light into beams of differing polarization.

: A beam splitter is an optical device that splits a beam of light in two. It is the crucial part of most interferometers.


Properties

: 50.8mm x 50.8mm x 50.8mm+/-0.2mm

: BK7

: λ/4 at λ = 632.8 nm per 25.4mm range, 60-40 scratch-dig

: Tp >95%, Rs > 99.5% (approx..)

: Tp/Ts > 500:1 (approx.)

: Ravg. < 0.5% per surface (approx..) (With multilayer AR coating for 770-800 nm)

: 0 to 70 oC or nearest std.

: 0o± 5o or nearest std

: ≤ 5 arc-min (For transmitted beam) 90 o± 5 arc-min (For reflected beam)

: >500mJ/cm2, 20ns, 20Hz, @1064nm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
