Specification Sheet

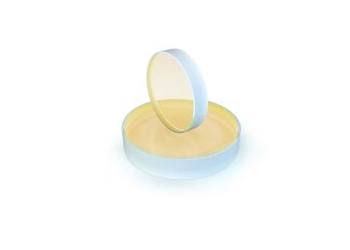

Non-Polarizing glass plate AR coated @ 532nm

: NPG081


Properties

: Grade A BK7 glass

: Multi layer non polarizing dielectric anti- reflection coating for 532 nm

: Multi layer non polarizing dielectric anti- reflection coating for 532nm

: S- and P-polarization components matched to within 5%

: ≤λ/10 @ 532 nm over the clear aperture

: 45°/± 3°

: 75.0±0.1 mm

: ≥ 95% of diameter

: 5.0±0.2mm

: λ/ 10 per inch at 532 nm

: < 2 arc min

: SQ 15/5 scratch/dig or better

: 1MW/cm2 @ 532nm CW and 2 J/cm2 in 1ns pulsed @ 532nm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
