Specification Sheet

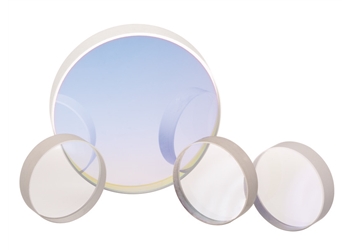

Nd:YAG Laser mirror, dia 25 mm, thick 5 mm

: NDY 063

: High-Energy

: Nd:YAG laser mirror is manufactured using high purity fused silica substrates and ultra hard dielectric coatings.


Properties

: 25 mm

: ± 0.1%

: 5 mm

: ± 0.1%

: 1064nm and 532 nm

: >6 J/cm2 for 10 nsec , 20 Hz repetition rate

: Fused silica

: > 99% for S and P Polarization for Angles of Incidence from 0 to 45°

: 90% of total area

: ~ λ/10

: 10-5, scratch/dig


Safety Information

Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
