Specification Sheet

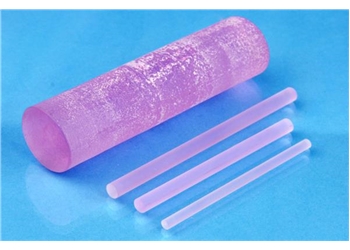

Nd YLF laser rod (1%, a-cut, dia5*110mm, AR/AR@1053nm)

: NDYL007

: Nd: YLF, is an excellent crystal for mode-locked operation for it has advantages of weak thermal lensing, relatively broad fluorescence line width and naturally polarized oscillation. The use of high quality staring materials for crystal growth, whole boule interferometry, and precise inspection of scattering particle in crystal using He-Ne laser assures the each crystal will perform well.

: ● High power, low beam divergence, efficient single mode operation
● Thermal lensing lower than that of YAG
● Barrel side can be optimized for better heat handing


Properties

: 1053 nm

: within 3° of the crystal "a" axis

: Nd

: 1% +- 0.2 % (by weight)

: ~ 480 +- 10 usec

: ~ 1.2 X 10~19 CM2

: -

: < 0.001 cm-1

: 25 dB

: >=10J/cm2 for 1 ns laser pulse

:

: 1 ± 0.1 deg

: < 10 arc sec

: Better than lamba10 of wave at 632.8 nm

: scratch dig 20-10 or better

: @ 1053 inn with reflectivity per surface 5 0.25%

: > 10J/cm2 for 10 ns pulses


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc (Custom grade) POR
