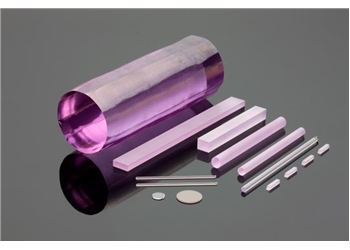

Nd :YAG Laser Rod (Premium Grade) 0.6 % doping of Nd3+ ion
: 0.6 % doping of Nd3+ ion
: End surface finish
Surface Flatness : λ/10 @ 632.8 nm
Surface quality (Scratch & Dig) : 10-5
Chamfer : 0.13 ± 0.08 mm @45°
Parallelism : ≤ 10 arc seconds
Perpendicularity : ≤ 5 arc minutes
End surface coating : AR Coating @ 1064 nm on both ends
AR coating quality : MIL-C-675C adhesion, abrasion and humidity resistance or nearest standard
AR Coating reflectivity : ≤ 0.1 % per surface @ 1064nm for normal incidence
: Information for this product is unavailable at this time.
Properties
: : 0.6 % doping of Nd 3+ ion
: [111] crystalline direction
: >25 dB between crossed polarizer in collimated He-Ne laser
: λ/10 per inch of the rod length @ 632.8 nm or better
: : Ground 55 ± 10 micro-inch or better
: <0.2% cm-1 over entire length
Safety Information
Safety Information for this product is unavailable at this time.
| Packings | Price (INR) |
|
1 pc
|
POR
|
|
10 pc
|
POR
|
|
50 pc
|
POR
|
