Specification Sheet

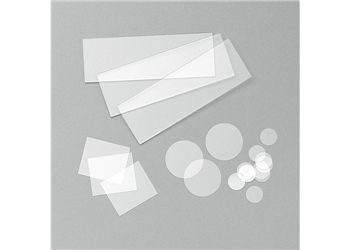

Yttrium-Stabilized Zirconia single crystal substrates, 10mm x 10mm x 0.5mm, <111>

: YSZ single crystal substrates

: YSC 069

: ZrO2 (Y2O3 stabilized ZrO2, 8 % +/- 0.5% mole Y2O3) Yttria-stabilized zirconia (YSZ) is a ceramic in which the crystal structure of zirconium dioxide is made stable at room temperature by an addition of yttrium oxide. These oxides are commonly called "zirconia" (ZrO2) and "yttria" (Y2O3), hence the name.

: YSZ doped with rare-earth materials can act as a thermographic phosphor and a luminescent material.


Properties

: 10 x 10 x 0.5 mm

: ± 0.05 mm

: Cubic

: Both side polished

: <111>

: ±0.5 °

: < 5A


Safety Information

WGK Germany 1


PackingsPrice (INR)
1 pc POR
10 pc POR
