Specification Sheet

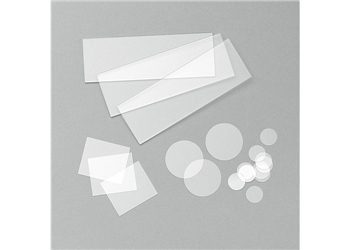

Yttrium-Stabilized Zirconia, single crystal substrates, 10mm x 10mm x 0.5mm, <100>

: YSZ single crystal substrates

: YSC 065

: ZrO2 (Y2O3 stabilized ZrO2, 8 % +/- 0.5% mole Y2O3) Yttria-stabilized zirconia (YSZ) is a ceramic in which the crystal structure of zirconium dioxide is made stable at room temperature by an addition of yttrium oxide. These oxides are commonly called "zirconia" (ZrO2) and "yttria" (Y2O3), hence the name.

: YSZ has a number of applications - its hardness and optical properties in monocrystal form , it is used as jewelry.


Properties

: 10 x 10 x 0.5 mm

: ± 0.05 mm

: Cubic, Face Centered, CaF2 type

: Both side polished

: <100>

: ±0.5 °

: < 5A


Safety Information

WGK Germany 1


PackingsPrice (INR)
1 pc POR
10 pc POR
