Specification Sheet

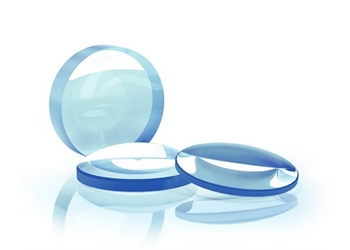

Laser Grade Plano Convex Lens, 38.1 mm Dia, Focal Length : 127 mm

: Plano-Convex Cylindrical Lens (Laser grade)

: LGP009

: Focal Length : 127 mm

: Surface quality 40-20 scratch & dig or better
Wavelength transmission : >85% for 500-2000 nm
>99% for 1080 nm

: Plano Convex Cylindrical Lens, are used to focus light to a thin line in laser scanners, spectroscopy, dye lasers, acousto-optics, optical processors and other similar applications.


Properties

: BK-7 or Fused Silica

: 127 mm (± 1%)

: 38.1 mm (± 2%)

: 1070 -1080 nm

: > Central 85% of diameter

: AR coated @1080 nm on both surfaces

: > 100 kW/cm2 CW @1080 nm.

: < 1 arc min

: λ/10

: 6~7mm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
1000 pcs POR
