Specification Sheet

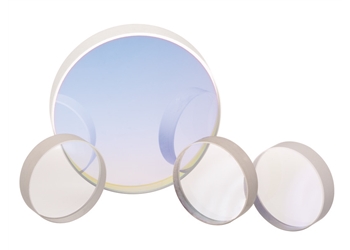

Nd:YAG laser mirror, dia 50 mm, thick 5 mm

: NDY 048

: High-Energy

: Nd:YAG laser mirror is manufactured using high purity fused silica substrates and ultra hard dielectric coatings.


Properties

: 50 mm

: ± 0.1%

: 5 mm

: ± 0.1%

: > 99.5 % for both s and p polarizations @ 532 nm wavelength

: UV fused silica /BK 7 (Laser grade)

: Dielectric Multi-layer coating

: 45°± 3°

: λ/10

: 10-5

: Polished

: More than 15 J/cm2 for 10 ns laser pulses @ 10 Hz repetition rate


Safety Information

Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
