Specification Sheet

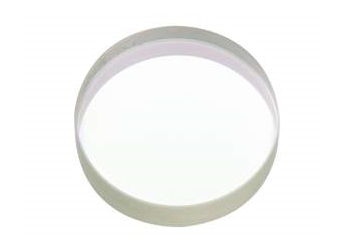

High reflectivity mirror with hard dielectric coating (45° angle of incidence 532nm)

: HRM096

: Designed for 45° angle of incidence.

Aperture at the center


Properties

: Grade A BK 7 glass, flat mirror

: Multi layer Dielectric coating

: for 532 nm @ 45o with a clear aperture of ≥ 90% of diameter

: HR 99.99% at 45° @ 532nm for both S & P polarization

: commercial polished , AR coated @ 532nm

: 45°± 3°

: 50.0±0.1 mm

: 5.0±0.2mm

: λ/ 10 per inch at 532 nm

: < 2 arc min

: SQ 15/5 scratch/dig or better

: 5mm

: 1MW/cm2 @ 532nm CW and 2 J/cm2 in 1ns pulsed @ 532nm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
