Specification Sheet

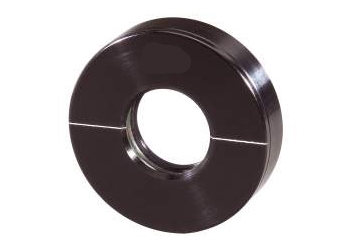

Half wave plate @ 633nm

: HWP0126

: for synthesis

: Two common types of waveplates are the half-wave plate, which shifts the polarization direction of linearly polarized light, and the quarter-wave plate, which converts linearly polarized light into circularly polarized light and vice versa. A quarter-wave plate can be used to produce elliptical polarization as well.

: Information for this product is unavailable at this time.


Properties

: Quartz (Crystalline)

: ≤ λ /300

: ≤ 10 arc -sec

: 20-10 Scratch -Dig

: ≤ 0 25% Per surface

: 1 inch (25.4 mm)

: ≥ 10 mm

: ≤ λ 8 @ 633 nm

: ≥ 5J/cm2 (1064 nm, 10 ns, 10 Hz)

: +0.0, -0.1mm

: 12.7 mm

: AR/ AR, R<0.25%@633nm


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
