Enquiry

Specification Sheet

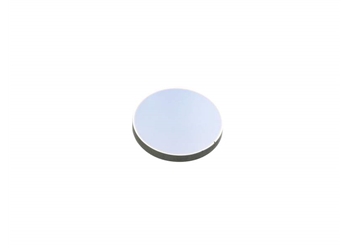

Germanium optical (mono crystalline) windows, 100 mm dia, 20 mm thick, 99.999%

: Germanium windows, germanium substrate

: GW 108

: mono crystalline

: Ge

: 99.999%

: 72.64

: Germanium is a chemical element with symbol Ge and atomic number 32. It is a lustrous, hard, grayish-white metalloid in the carbon group, chemically similar to its group neighbors tin and silicon.

: GW 108 (OTTO) Germanium optical (mono crystalline) windows, 100 mm dia, 20 mm thick, 99.999% - used at temperatures below 100°C. Germanium’s high density (5.33 g/cm3) should be considered when designing for weight-sensitive systems


Properties

: 99.999%

: 100 mm

: ± 1%

: 20 mm

: ± 1%

: 1.8-23 um

: 4.0034

: 936°C

: 780 kg/mm

: 5.327 gm/cc


Safety Information

RIDADR NONH for all modes of transport WGK Germany 3


PackingsPrice (INR)
1 pc 690399.00
10 pc POR
Custom size POR
