Specification Sheet

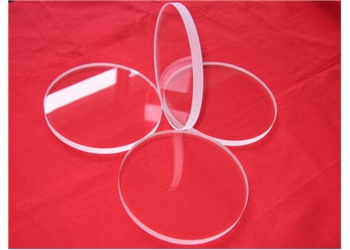

Fused silica wafers dia 100 mm thick 0.25 mm

Code

: FS036

Grade

: UV grade

Description

: Fused silica is the key starting material for opticals

Applications

: FS036 (OTTO) Fused silica wafers dia 100 mm thick 0.25 mm - used for telecommunications.

Categories

Material

: UV grade fused silica

Diameter

: 100 mm

Diameter tolerance

: ±0.1 mm

Thickness

: 0.25 mm

Thickness tolerance

: ±0.05 mm

Parallelism

: < 10 arcsec

Index of Refraction

: 1.458± 0.05

Wavelength Range

: 200 – 2200 nm

Surface quality

: 40-20

Surface roughness

: < 10 Å

Internal Transmittance at 185 nm

: ≥ 85 %

External Transmittance at 185 nm

: ≥ 78 %

Transmittance curve

: Spectral transmittance curve in 200 – 2200 nm to be provided with the item

Safety Information for this product is unavailable at this time.
