Specification Sheet

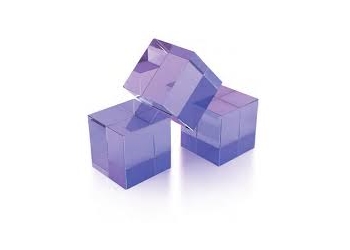

DKDP crystals (100 x 100 x 20 mm3)

: KDP, DKDP Crystals

: DKDP 006

: Deuterated potassium dihydrogen phosphate (KD2PO4) or DKDP single crystals are widely used in non-linear optics as the second, third and fourth harmonic generators for Nd:YAG and Nd:YLF lasers. DKDP crystals are grown by a water-solution method at usual level of deuteration >98%.

: DKDP 006 (OTTO) DKDP crystals (100 x 100 x 20 mm3) - used in non-linear optics as the second, third and fourth harmonic generators for Nd:YAG and Nd:YLF lasers. Laser frequency conversion; harmonic generation for high pulse energy, low repetition (<100 Hz) rate lasers; Electro-optical modulation; Q-switching crystal for Pockels cells.


Properties

: 100 x 100 x 20 mm3

: ± 1 mm

: More than 75 mm(Diameter)

: Z-cut

: ± 30 arc min

: ≤ λ/6 at 633 nm (RMS error)

: 60 - 40 or better within the aperture

: ≤ 10 arc sec

: AR @ 1054 ± 15 nm; R< 0.2%

: 96% ± 1%


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc 8109099.00
5 x 1 pc POR
Custom size POR
