Specification Sheet

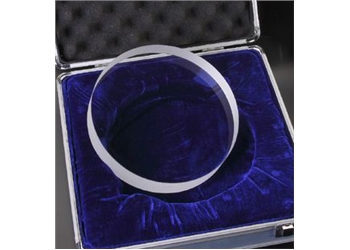

Dielectric coated HR mirrors (Multi-layer) 400nm

Code

: DCM 7689

Categories

Substrate

: BK7 (A grade)

Front surface

: Multi-layer Dielectric coating

Reflection

: >99% @ 400nm

Back surface

: Grounded

Wavelength

: 400 nm

Diameter

: 50 mm

Diameter tolerence

: ± 1 %

Clear aperture

: ≥ 90% of diameter

Thickness

: 8 mm

Thickness tolerance

: ± 1 %

Angle of incidence

: 45 deg

Surface Flatness

: 40/20 s/d

Laser damage threshold

: 1MW/cm2 @ 532nm CW and 2 J/cm2 in 1ns pulsed @ 532nm or better

WGK Germany -
RTECS MD5070000

Packings	Price (INR)
1 pc	24039.00
10 pc	POR
