Specification Sheet

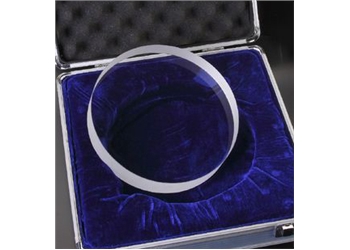

Dielectric coated beam splitter (Multi-layer) 400 nm

Code

: DBS 5378

Categories

Substrate

: BK7 (A grade)

Front surface

: Multi-layer Dielectric coating

Front surface Reflection

: 50 % for both S & P

Front surface Transmission

: 50 % for both S & P

Back surface

: AR coated @ 400 nm

Diameter

: 50 mm

Diameter tolerence

: ± 1 %

Clear aperture

: ≥ 90% of diameter

Thickness

: 8 mm

Thickness tolerance

: ± 1 %

Angle of incidence

: 45 deg

Parallelism

: 3 deg +/-3

Surface Flatness

: 40/20 s/d

Laser damage threshold

: 1MW/cm2 @ 532nm CW and 2 J/cm2 in 1ns pulsed @ 532nm or better

WGK Germany -
RTECS MD5070000

Packings	Price (INR)
1 pc	49059.00
10 pc	POR
