Specification Sheet

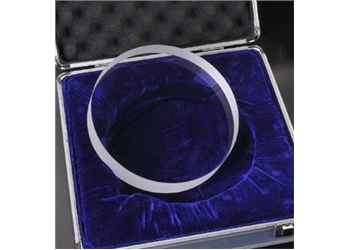

Dielectric coated beam splitter (Multi-layer) 1050-1070 nm

Code

: DCBS069

Categories

Substrate

: Fused silica / BK7

Front surface

: Multi-layer Dielectric coating

Front surface Reflection

: 50% @ 1050-1070 nm

Front surface Transmission

: 50% @ 1050-1070 nm

Back surface

: AR coated @ 1050-1070 nm

Diameter

: 50 mm

Diameter tolerence

: ± 1 %

Clear aperture

: ≥ 90% of diameter

Thickness

: 8 mm

Thickness tolerance

: ± 1 %

Angle of incidence

: 45 deg

Parallelism

: 3 deg +/-3

Surface Flatness

: 40/20 s/d

Laser damage threshold

: 1MW/cm2 @ 532nm CW and 2 J/cm2 in 1ns pulsed @ 532nm or better

WGK Germany -
RTECS MD5070000

Packings	Price (INR)
1 pc	50409.00
10 pc	POR
