Specification Sheet

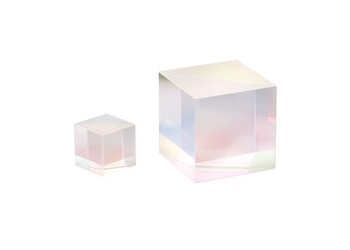

Broadband polarizing cube Beam splitter, 12.7 x 12.7 x 12.7 mm

: PBSC990

: puriss

: Shape : CUBE
Efficiency
p-polarization transmission (Tp) >90% avg
s-polarization, reflection (Rs) >99.5% avg
Transmitted Beam Deviation: < = 5 arc min
Reflected Beam Deviation: 90° +-5 arc min

: A beam splitter is an optical device that splits a beam of light in two. It is the crucial part of most interferometers.


Properties

: 12.7 x 12.7 x 12.7 mm

: SF 2, NSSK grade, precision annealed optical glass 1

: 900 nm- 1300 nm

: 20-10 scratch-dig

: 0 ° +5 °

: 12.7 mm

: Central diameter, >80% of dimension

: 2 kW/cm2 CW, 1 J/cm2 with 10 nsec pulses, typical

: Transmission of P-polarization (Tp) >90% avg

: <= λ /4 at 632.8 nm over the clear aperture


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc POR
10 pc POR
