Specification Sheet

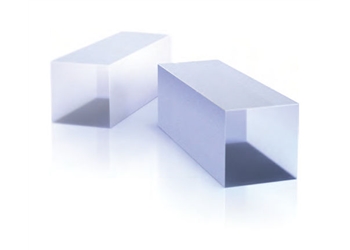

β Barium borate crystals (10 x 10 x 1 mm3)

: BBO Crystals

: BBO 126

: Beta barium borate (BBO) crystals are nonlinear optical crystal, used as laser crystals, NOPA crystals or non collinear phase matching.

: Application Second harmonic generation of 1054 nm


Properties

: BBO crystal

: 10 x 10 x 1 mm3

: ± 5%

: 90% or larger

: Type 1 SHG @ 1054 nm

: ≤ λ/8 at 633nm

: ≤ λ/8 at 633nm

: 10-05

: Surface 1 AR coated at 1054 nm and Surface 2

: AR coated for 1054 and 527 nm with R<0.5 %.

: ≥ 0.5 GW/cm2 for 10 ns pulses @ 1064 nm

: The crystals should be mounted in an appropriate black anodized holder


Safety Information

Safety Information for this product is unavailable at this time.


PackingsPrice (INR)
1 pc 126099.00
5 pc POR
