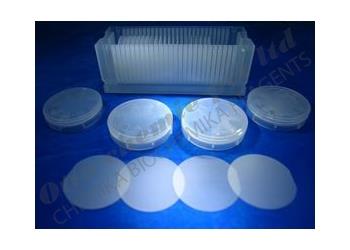

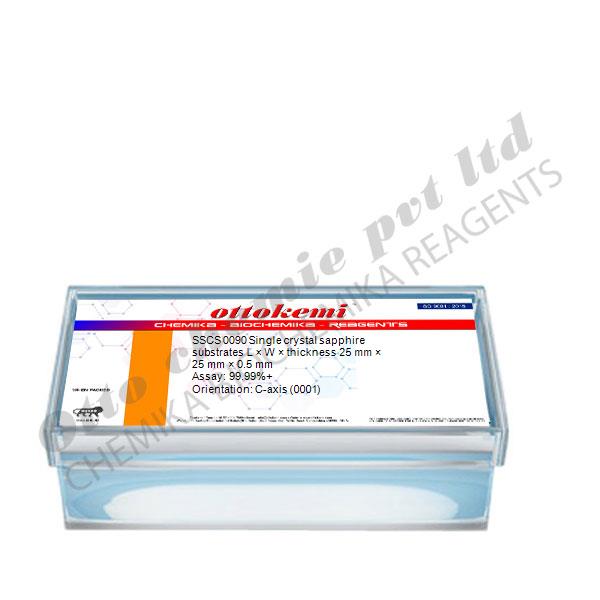

Single Crystal Sapphire Substrates (25 mm x 25 mm)

Code: SSCS 0090
99.99%

Bottle / Drum
18%
99.99%


Bottle / Drum

18%
PackingsPrice (INR)
1 pc POR
100 pc POR
Packings
Enquire
Properties
99.99%+

C-axis (0001)

±0.1 º or better

25 mm x 25 mm

0.5 mm

Both surfaces epi-polished with r.m.s surface roughness ≤ 5 Å

5 μm or nearest standard

Description

Bottle

Single crystal sapphire has a unique combination of physical, chemical and optical properties allowing it to withstand high temperatures, high pressure, thermal shock, and water or sand erosion

Application

sapphire substrates - are usually used for hybrid microelectronic applications requiring a uniform dielectric constant and highly insulating characteristics. Sapphire substrates for photoelectronic applications, including the high brightness LED market.

Safety Information

WGK Germany 2


RTECS VW0400000

Documentation

Certificate Of Analysis

(For eg. B 1615-0108)

Other Documents

For any quries, please write to us at

qc@ottokemi.com
Technical Services

Our team of R&D Experts and Scientists have expertise in all areas of research of Lab Chemicals, Nano Technology, Life Science, Custom Synthesis, Chromatography, and many others.

Enquire Now

DisclaimerThe above particulars do not release the customer from the obligation to carry out an inspection of goods received.
Not for medical, household or any other uses, for lab use only, Please test before use.
