Synonyms: Silicon substrate, single crystal, dia x thickness 100 mm x 500 μm
Silicon wafers or a “slice” of substrate find applications in the fabrication of integrated circuits, solar cells etc. They serve as a substrate for various microelectronic devices.

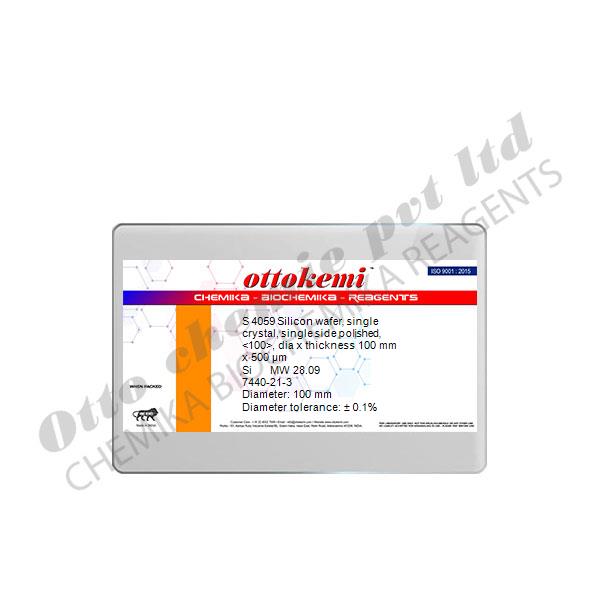

S 4059 (OTTO) Silicon wafer, single crystal, single side polished, <100>, dia x thickness 100 mm x 500 μm - used in electronics for the fabrication of integrated circuits and in photovoltaics for conventional, wafer-based solar cells.
WGK Germany 2
Certificate Of Analysis
(For eg. B 1615-0108)
Other Documents
For any quries, please write to us at
